60w switchable Led Luminaire Retrofit Kit within 44 seconds

Model Number : TE55S-60-S1

Certification : ENEC, CE, RoHS, CB

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, L/C, Paypal

Supply Ability : 100,000 Pieces per Month

Delivery Time : 3-5 working days for sample, 7-15 working days for mass production

Packaging Details : 8pcs per carton(159*29*22cm)

Input Voltage : 220-240V AC/DC

LED : SMD2835

Input Frequency : 50 or 60 HZ

Lifetime : 50,000(L80B10)

Power Factor : >0.95

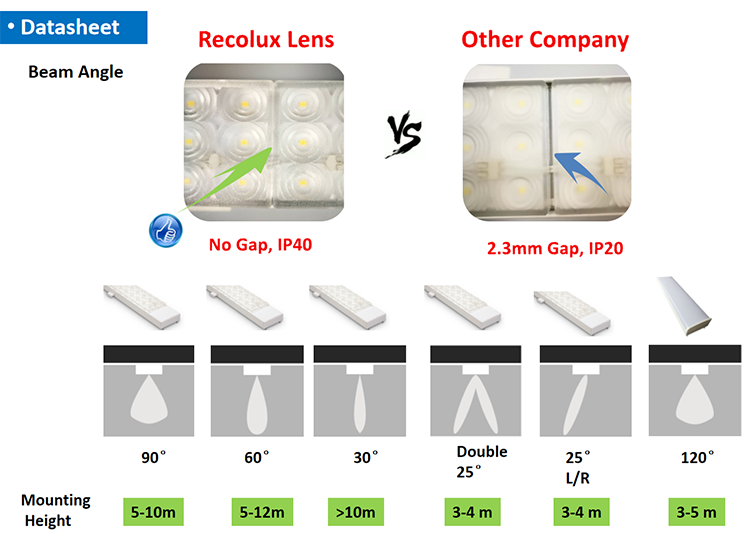

Beam Angle : 30°/60°/90°/25°/15°/120°

Switching Cycles : 100,000 times

CRI : Ra>80 or Ra>90

Protection Class : Safety class I

UGR : <23

Driver : Tridonic, Osram, , VS

SDCM : <5

Luminous Efficacy : 160lm/w

Flicker Free : Yes

Emergency : 4W 3H

Sensor : Motion

Dimmable : DALI, 0-10V

Material : Aluminum+PMMA

Warranty : 5 Years

Contact Now

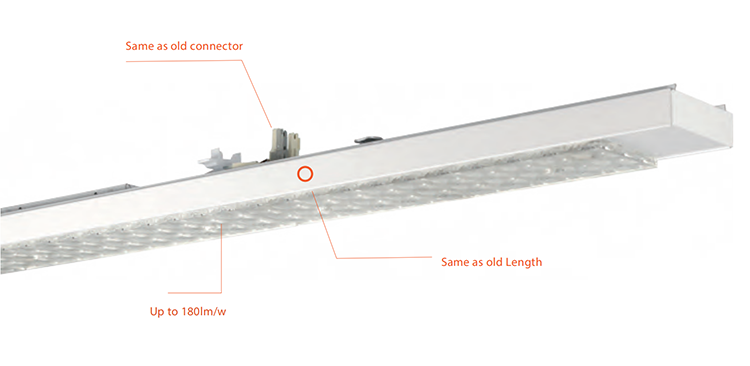

Quick without tools 60w switchable within 44 seconds to LED Luminaire Retrofit for Trilux E-line T5 light strip system

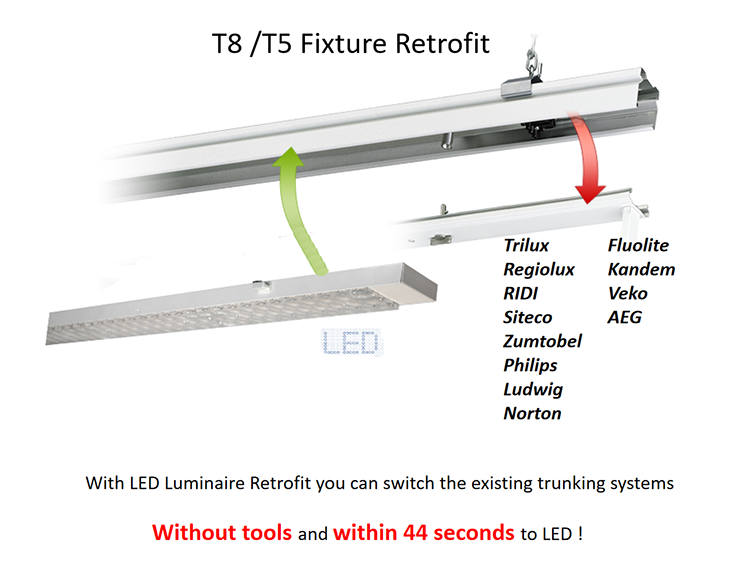

With LED Luminaire Retrofit you can switch the existing trunking systems without tools and within 44 seconds to LED
Compatible with Trilux E-line T5 installed in the past years
LED technology saves 70% energy costs compared with old illumination.
Doesn’t need any physical modifications on the existing trunking system
Perfect retrofit solution to replace the old 2x36w, 1x58w and 2x58w T8 tubes with and without reflectors
One-for-one carrier solution for Trilux, RIDI, Ludwig, , AEG, Zumtobel, VEKO, Regiolux, Siteco, Fluolite, etc.

Datasheet:

Item	Model NO.	Watt	Lumen	Efficacy	Function	EEC	L(mm)
1	RS85S-60-S1	60W-50W-42W-32W	9,000lm	160LM/W	On/off	A++	1495
2	RS85S-60-V1	60W-50W-42W-32W	9,000lm	160LM/W	On/off	A++	1495
3	RS85S-68-PC	68W-60W-54W-48W-38W 32W-25W-20W	10,500lm	160LM/W	On/off	A++	1495
4	RS85S-72-B3	72W-68W-64W-60W-56W-54W-52W-50W-48W-45W	10,500lm	160LM/W	0-10V	A++	1495
5	RS85S-68-T4	Max 68W	10,500lm	160LM/W	DALI	A++	1495

Maximum Loading Of Automatic Circuit Breakers:

	RS85S-60-S1	RS85S-60-V1	RS85S-68-PC	RS85S-72-B3	RS85S-68-T4
B10	12	13	15	15	13
B16	19	21	24	25	21
C10	20	22	25	27	21
C16	32	35	40	42	35

60w switchable Led Luminaire Retrofit Kit within 44 seconds

FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 5 days, mass production time needs 4 weeks.

Q3. Do you have any MOQ limit for led light order?
A: No MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.Airline and sea shipping also optional.

RECOLUX welcome your inquiry. We will give your best service and best quality goods.
Any questions or doubt. Please feel free to contact us. Welcome to China! Welcome to visit our factory and showroom!
More question pls contact us directly.

For more information, welcome to visit our website www.recolux.com.
